Danh mục nội dung: Chuyên mục chính/3. Hệ thống, công cụ và thiết bị phát triển sản xuất điện tử/3.1. Tủ sấy, tủ bảo ôn, tủ môi trường (Dry cabinet, Enviroment storage)

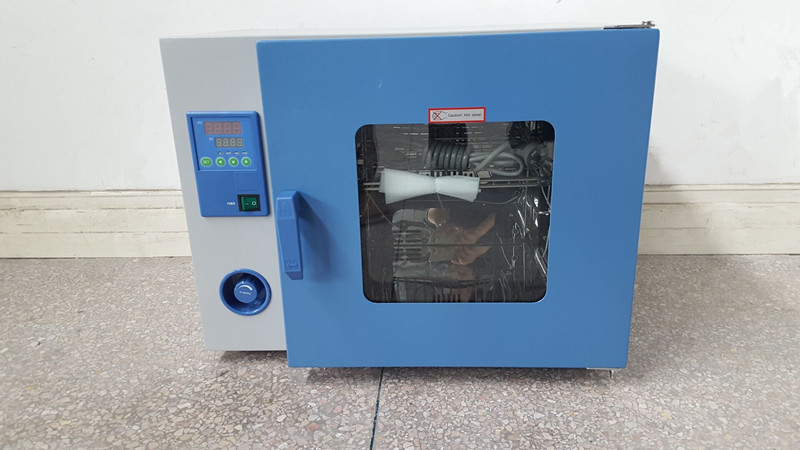

  200/ 250 Degree C Hot Air Oven: Lò sấy khí nóng đến 200°C hoặc 250°C
  Part#: Climatest Symor TG-9140A
  Ghi chú: Tủ sấy nướng (Baking Oven)
  Nhãn hiệu: Climatest Symor (Trung Quốc/ China)
  Cấu hình: Model A là loại nhiệt max. 200°C, model B là loại max. 250°C
  Video: Temperature control: RT+10°C ~ +200°C / 250°C; capacities range from 20L to 960L
   [ Báo giá Quotation sheet ]   [ Shopping Shopping now ]   [ Views: 5023 ]   2021-07-08
 ◊ Đặc điểm chính:

Dry oven is a must instrument in every laboratory, with nearly 20 years efforts and innovation, Climatest now masters core technique of drying oven manufacturing, no matter temperature uniformity or temperature stability. Behind the quality is 15 years of consistent persistence, strong belief in excellence; from design to R & D to production, from promotion to sales to installation; every step reaches excellence, Climatest manufactures desktop and floor-standing models with temperature range RT+10°C - 200°C, 250°C, 300°C, 350°C, 400°C, and we are able to customize as per special requirements.

200°C Dry Ovens are used to dry or temper electronic components, material tests, torrefaction, wax-melting, high temperature aging, preheating and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.

Tủ sấy khô 200°C được sử dụng để làm khô hoặc ủ các linh kiện điện tử, kiểm tra vật liệu, nung chảy, nung chảy sáp, lão hóa ở nhiệt độ cao, làm nóng sơ bộ và khử trùng trong các doanh nghiệp công nghiệp và khai thác mỏ, phòng thí nghiệm và viện nghiên cứu khoa học.


 ◊ Mô tả chi tiết:

LED Controller



Features:

  . Exterior chamber is made by reinforced steel with painting; working chamber made by anti-corrosion stainless steel SUS#304

  . Intelligent PID control, LED controller with over-temperature alarm,timing range within 0~9999min

  . Hot air circulation system composed of Germany imported low-noisy air blower and optimal air duct which ensure uniform temperature distribution

  . Double layers of glass door, large transparent window to observe specimen

  . Forced air convection

Options:

      1. Programmable LCD controller
      2. Temperature record printer
      3. RS485/RS232 port and communication software
      4. Φ25mm test hole

Specifications:

Model

TG-9030

TG-9070

TG-9140

TG-9240

TG-9420

TG-9620

TG-9920

Power Consumption

850W

1550W

2050W

2450W

3100W

4000W

5200W

Capacity

30L

80L

136L

220L

420L

620L

1000L

Interior Dimension W*D*H(mm)

340×320×320

450×400×450

550×450×550

600×500×750

640×585×1355

840×600×1355

1000×600×1600

Exterior Dimension W*D*H(mm)

620×440×490

740×530×630

840×580×730

880×630×930

780×730×1780

980×800×1880

1140×800×2150

Temperature Range

RT+10°C ~ 200°C / RT+10°C ~ 250°C

Temperature Fluctuation

± 1.0°C

Temperature Resolution

0.1°C

Temperature Uniformity

±3%(test point@100°C)

Shelves

2PCS

3PCS

4PCS

Timing

0~ 9999 min

Power Supply

AC220V 50HZ

AC 380V 50HZ

Ambient Temperature

+5°C~ 40°C







Downloads (catalogue):
200-250 Degree C dry oven    (PDF585.19 KB)


 Thêm chi tiết:

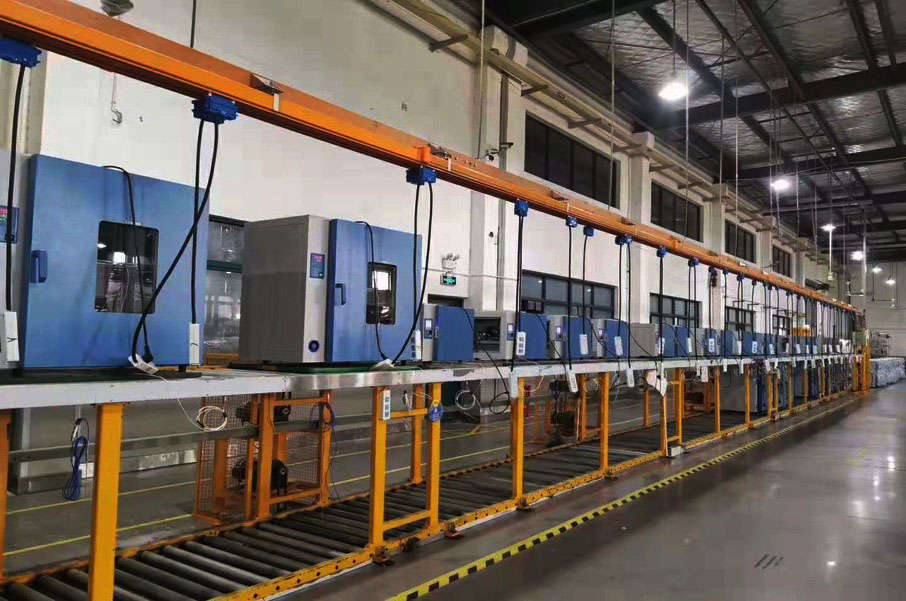

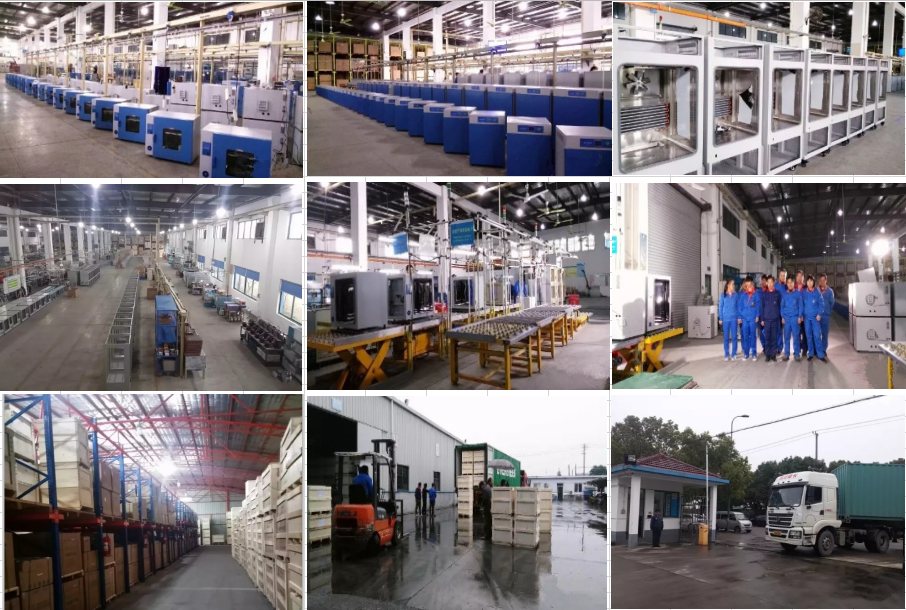

Workshop
